Engineering Evidence

This page separates what the repository and CI prove today from what still requires a live AWS/EKS environment.

Current reproducible evidence

Control	Evidence	Scope
Terraform validation	Terraform CI run 35611244984	formatting/init/validate; no AWS resources created
Kubernetes validation	Kubernetes CI run 35611244558	schema/policy checks against desired state
Policy/runtime configuration	Policy CI run 35611244115	Kyverno tests + security chart rendering
Reliability rules	Reliability CI run 35611244574	app metrics tests, promtool, manifests, shellcheck
Cost/operations	Cost & Operations run 35611245003	OpenCost/VPA rendering + cost-rule tests
Signed demo image	Supply-chain run 35513183442	build, provenance/SBOM, Trivy, keyless Cosign sign/verify
Live-readiness boundaries	Live Readiness CI run 35611244945	EKS baseline, namespace boundaries, activation helper checks

Verified Phase-4 image digest:

sha256:5fc1d1e30a9a7ec08830000b794dd5fefdec2026782224f9bb6bf87de89889db

Evidence gallery

The screenshots below are captures of public GitHub Actions pages, not mocked dashboards.

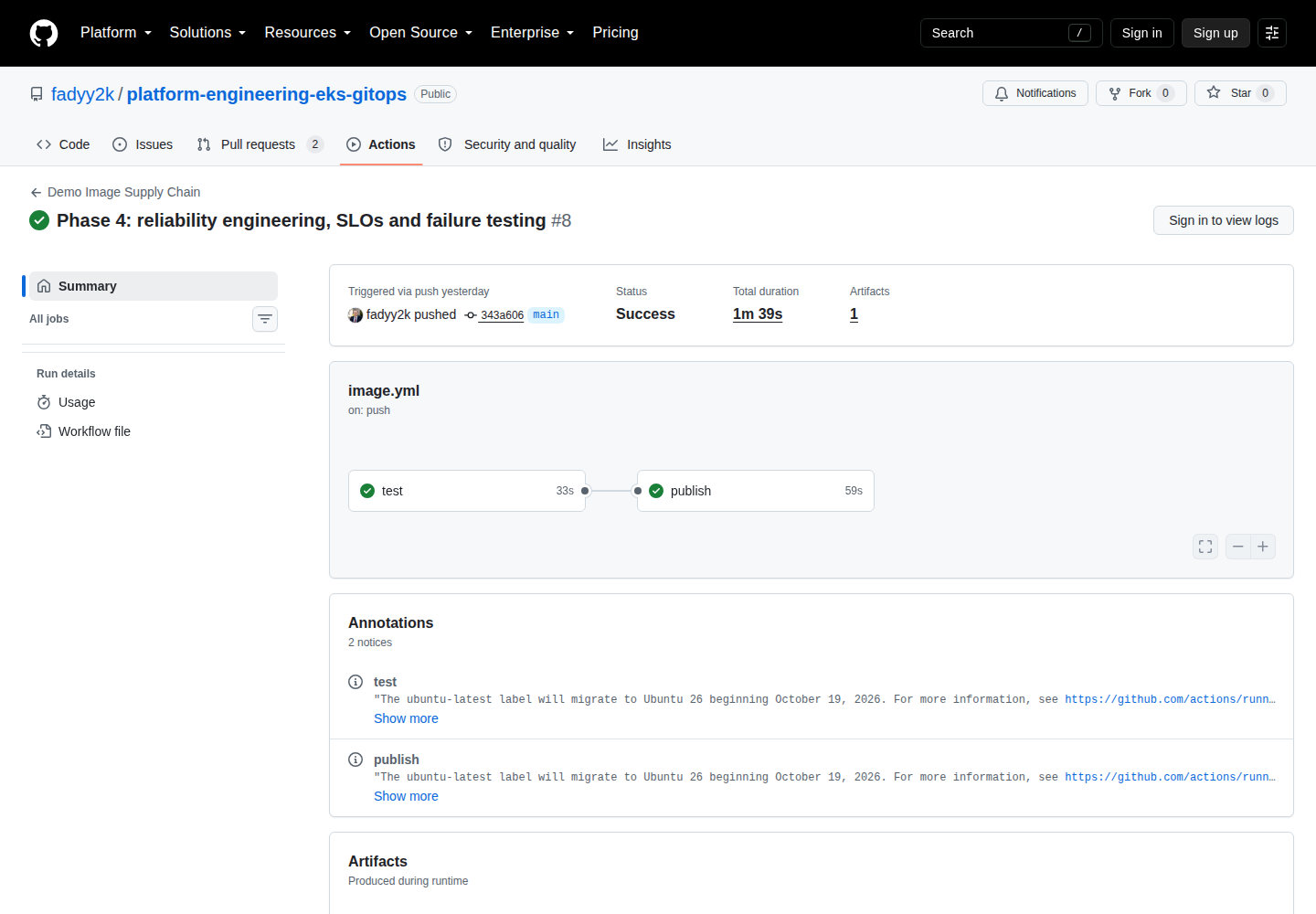

• Supply-chain run

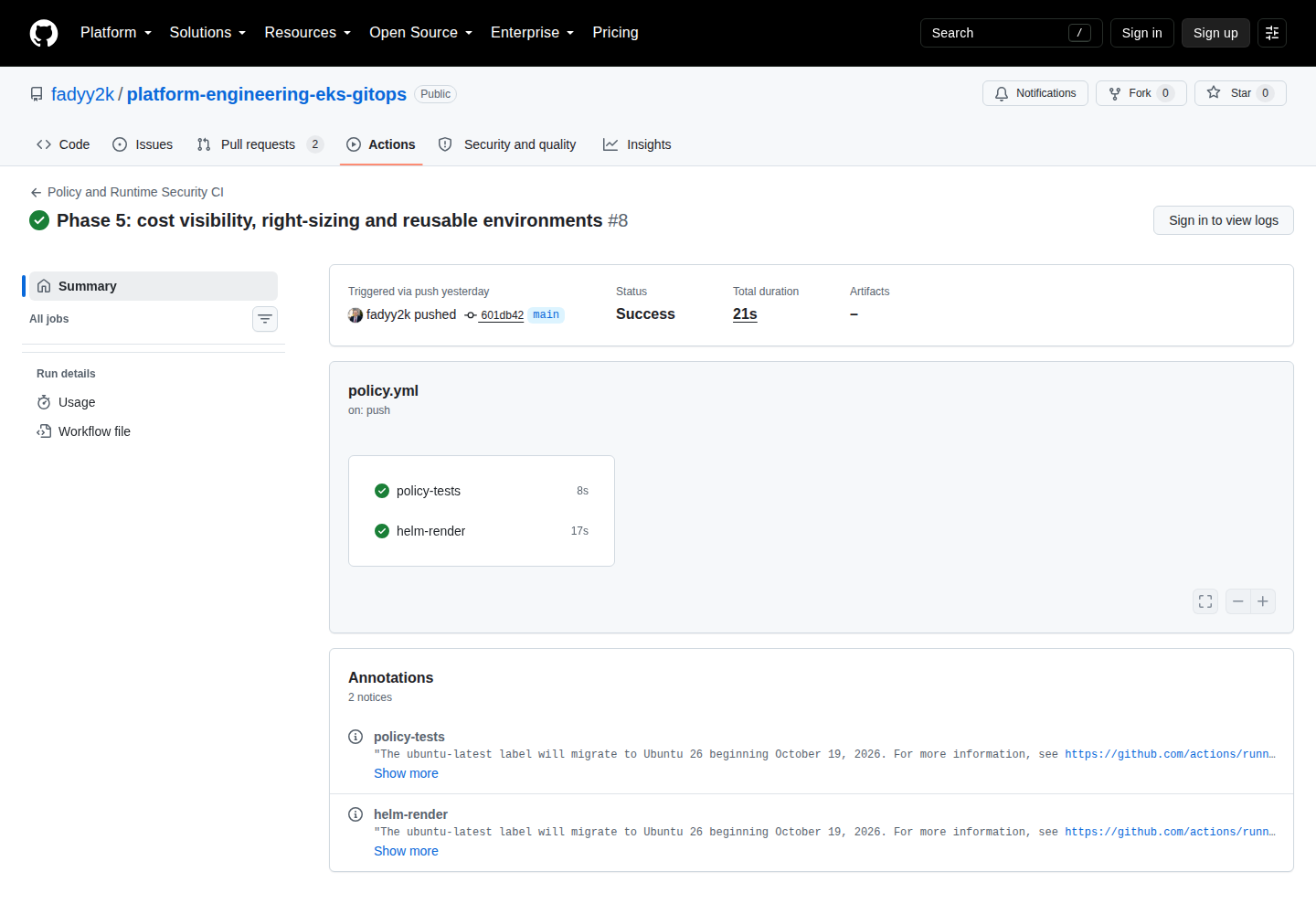

• Policy/runtime CI

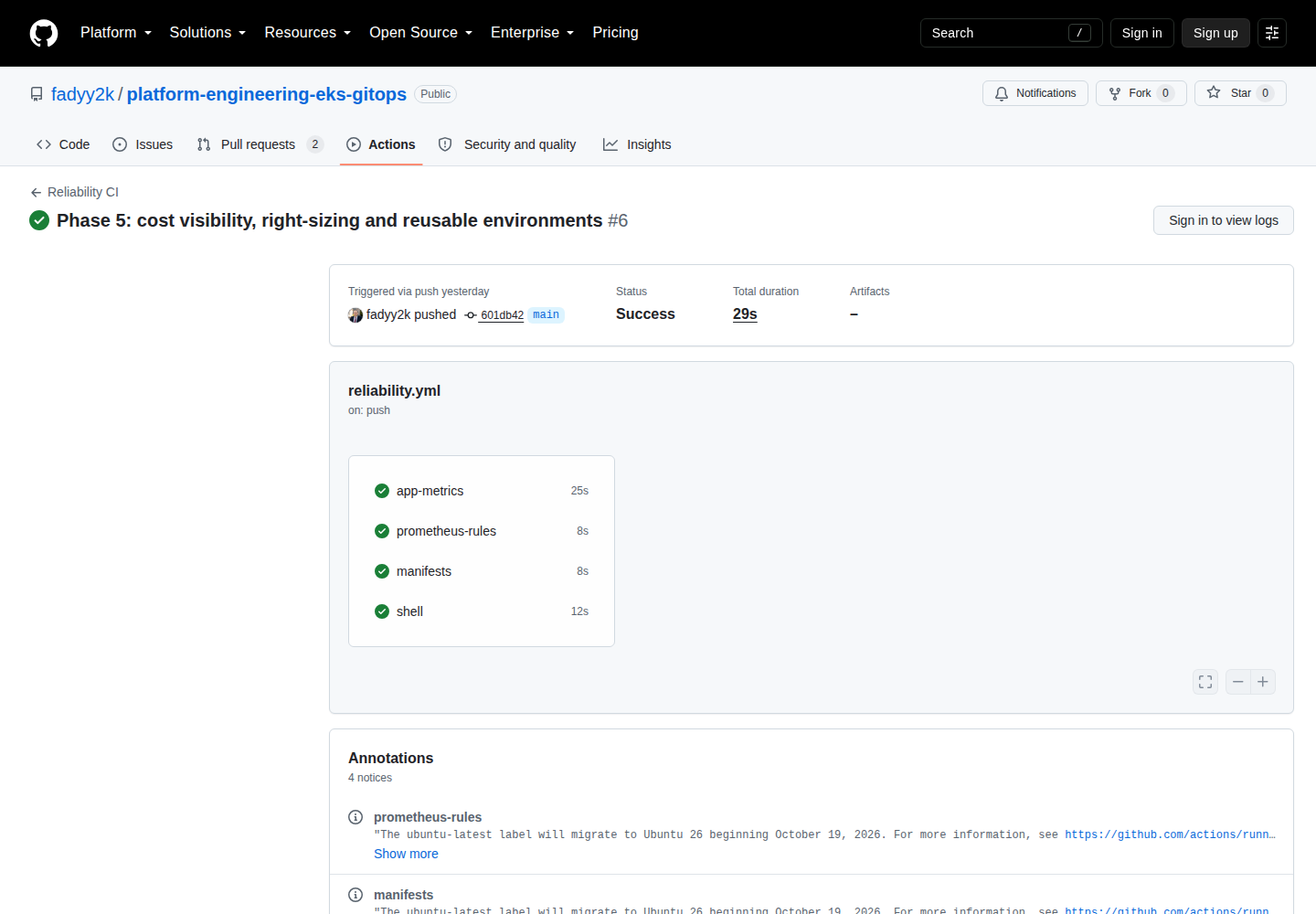

• Reliability CI

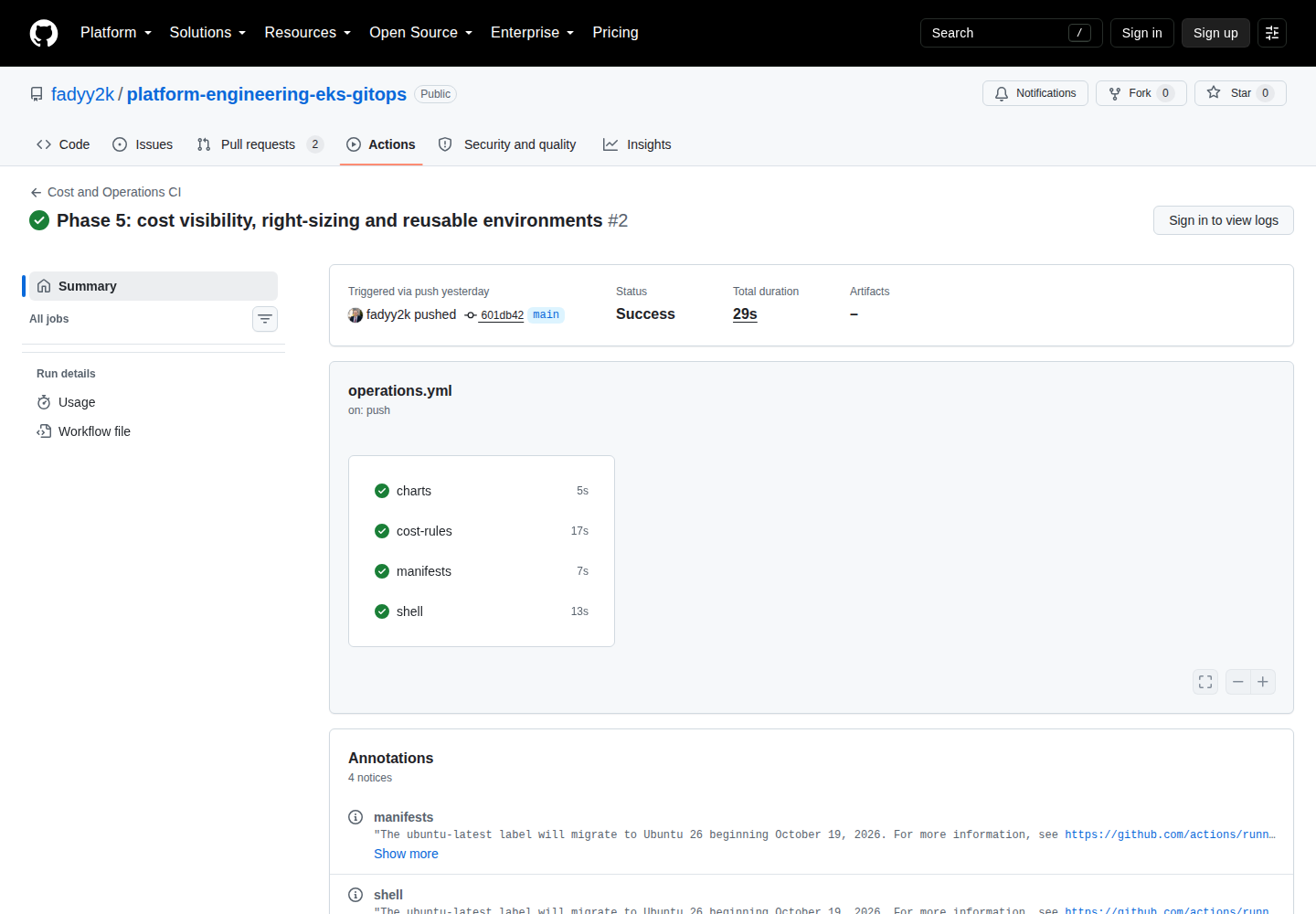

• Cost & operations CI

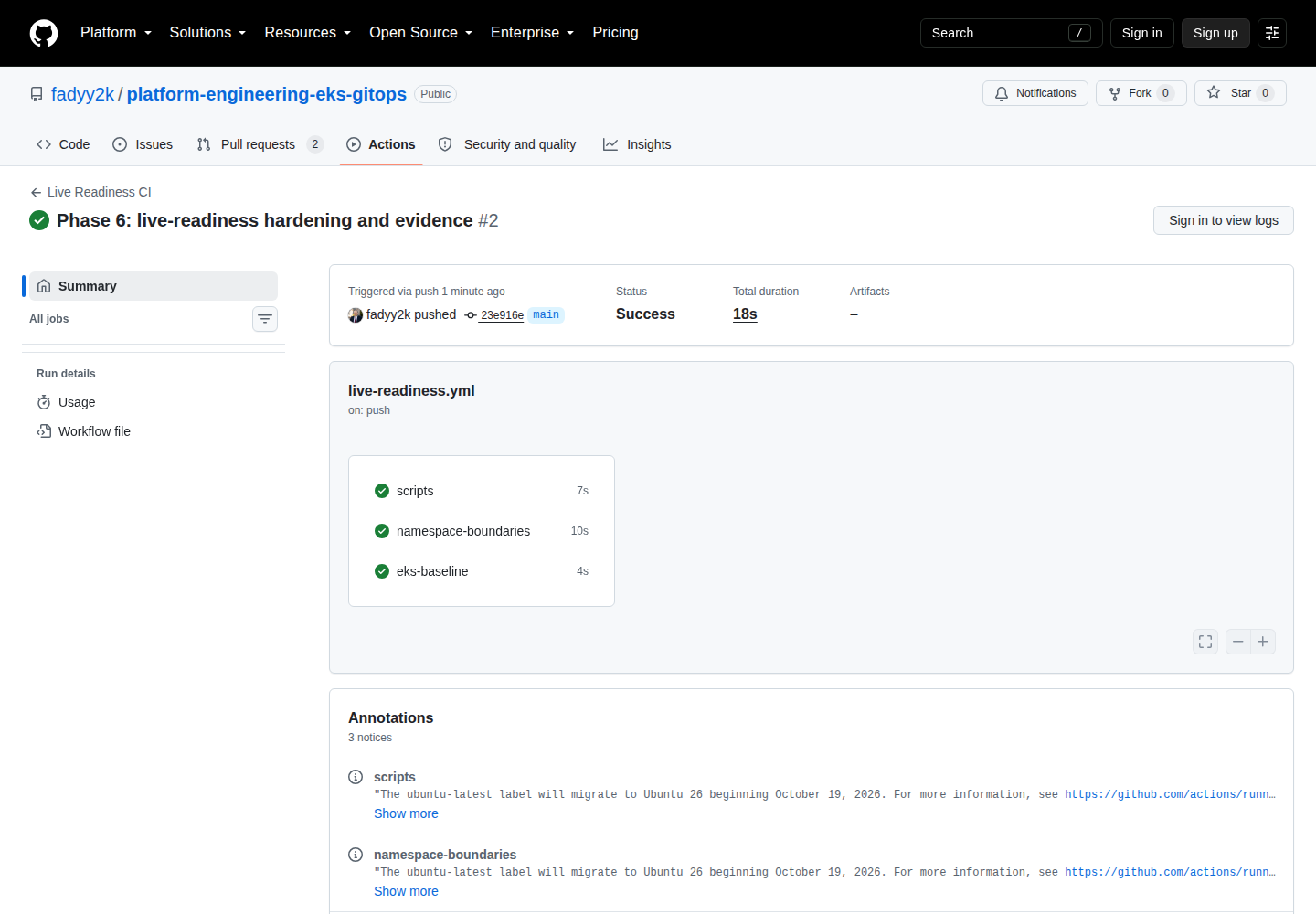

• Live Readiness CI

Local runtime evidence

Static CI is complemented by a real disposable kind runtime on Kubernetes 1.36.4. The local environment has demonstrated:

• Argo CD Healthy/Synced reconciliation for the demo, policy and cost-control applications;
• successful admission of the signed immutable demo image and denial of an untrusted image;
• Prometheus discovery of both demo replicas and loaded SLO rule groups;
• an in-cluster Trivy Operator report with zero critical/high/medium/low findings for the pinned demo digest at capture time;
• a benign Falco syscall detection tied to a temporary Kubernetes pod;
• recovery after a controlled pod-deletion game day;
• VPA recommendation-only output;
• OpenCost namespace allocation data against the in-cluster Prometheus service.
• namespace-mapped Velero backup/restore completed locally with the restored Deployment reaching 2/2;
• controlled error-burn generated 200 HTTP 503 responses and recovered to 2/2;

See Local Runtime Evidence for the transcript, screenshots, scope and limitations.

Not yet claimed

The repository does not currently claim:

• a provisioned AWS EKS cluster;
• successful live GitHub OIDC role assumption;
• live Argo CD reconciliation in EKS;
• external Alertmanager delivery;
• a Velero restore drill backed by AWS/EKS infrastructure;
• AWS-priced OpenCost allocation data;
• VPA recommendations from an EKS workload profile;
• a multi-region failover test.

Those items move to the proven column only after the Live Activation Runbook is executed in an approved non-production account and evidence is captured.
